TRAILERSAFE COMPACT

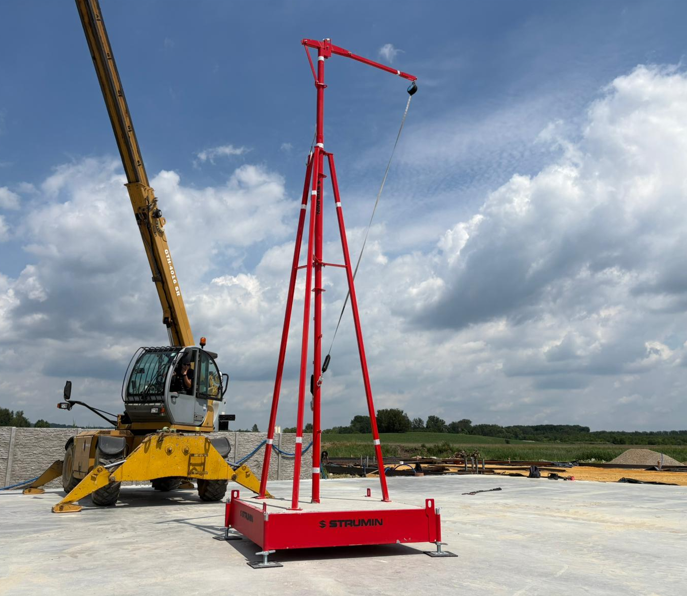

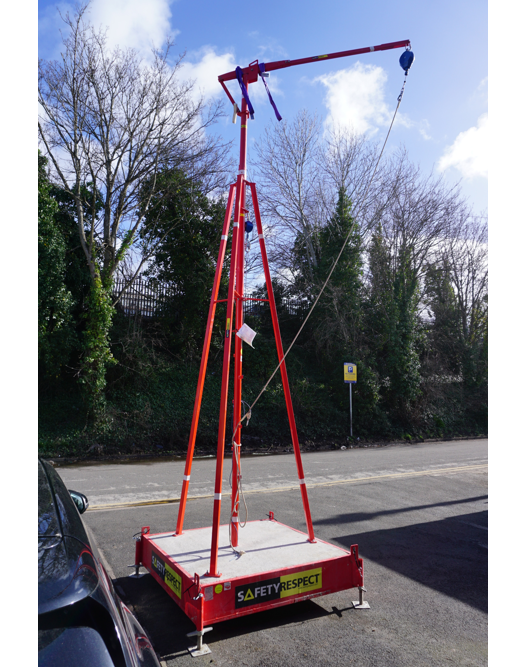

Trailersafe Compact is a Portable Davitt device designed for preventing Falls from Height for anyone working on trucks or trailerbeds when loading or unloading.

Classified as a Fall Arrest Anchorage Device and compliant with EN795.

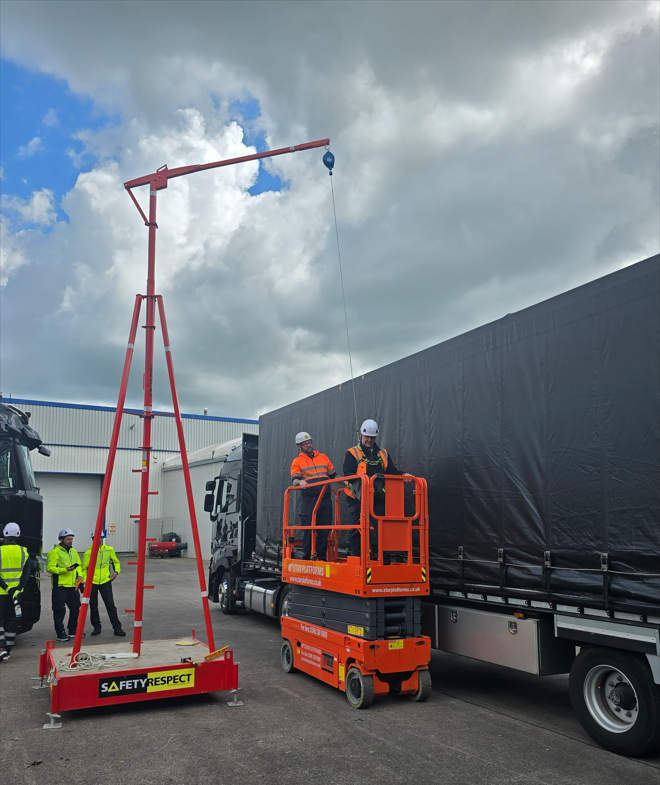

Trailersafe Compact can be utilised as a single unit or as a pair which when spaced 6 metres apart will provide overhead anchorage cover for a standard articulated trailer 13.6 metres in length.

Trailersafe is commonly used for unloading Structural steel and Precast concrete floor slabs offering mobility to the unloader for slinging loads whilst protected by the retractable lifeline.

TrailerSafe Compact is transportable and can be moved around site if there isn’t a dedicated loading / unloading area.

An Ikar 6 metre Fall arrestor is supplied with connector.

Trailersafe Compact are compliant to EN 795 2012

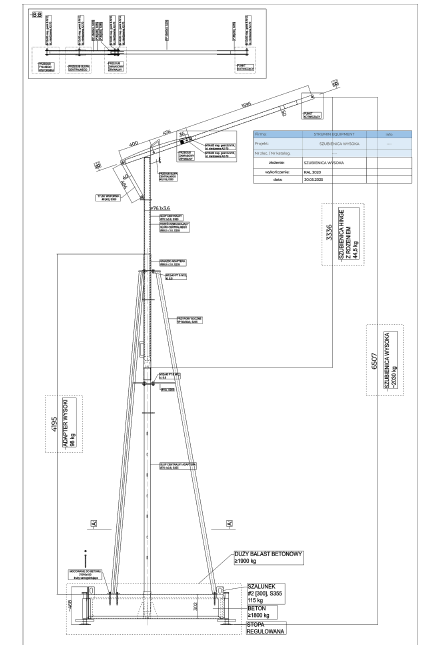

The distance from floor to Anchor Point is approximately 6500mm. depending on the height adjustment in the base jacks.

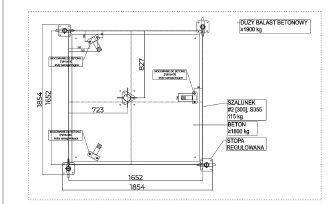

The plan area of the Weighted Base unit is 1854mm x 1854mm from the edge of the Base Jack Spreader bases.

Schedule for two Trailersafe Compact Units

Weighted Adjustable Base       x 2

Davitt Support Frame with Davitt    x 2

Retractable Fall Arrest Blocks        x 2

Cargo Ladder to access Trailers        x 1

1T x 2 metre Round Lifting Slings     x 2

Rope Tagline                                           x 1
