A properly tethered tool or object protects those working around and below you if it is accidentally dropped.
A Tool Lanyard acts as a connecting device between the tool or object and the anchor point which allows their use whilst maintaining an attachment that will arrest their fall if they are accidentally dropped when in use.
KEY FEATURES
Elasticated webbing that reduces load on user if the tool is dropped.
Suitable for lighter tools that have a captive handle or objects with holes that can be choked around.

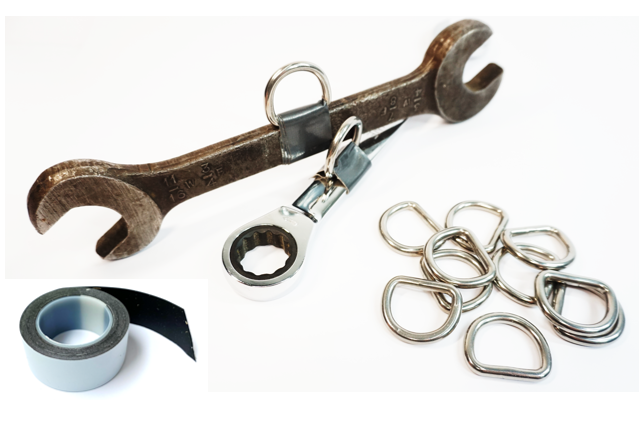

Retro-fit connectors ( Dee-Rings) can be applied to tools and attached using the connector

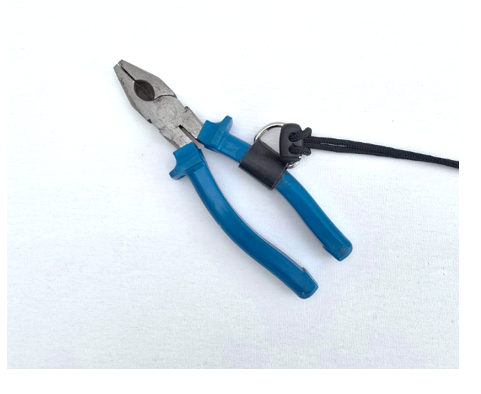

Wrist cord for holding lighter tools.
Double action karabiner prevents twists in the Lanyard.
High contrast stitch pattern for easy inspection.
Unique serial number for traceability.
COMPONENT DETAILS
RGTL8-3 Elasticatrd Tool Lanyard with 3kg. load rating.
3kg load-rated Tool lanyard made from elasticated webbing with Choke cord for attaching tools or objects or for wearing on the users wrist when working with hand-tools.
A swivel double action karabiner helps to avoid twists when attached to rotating tools eg screwdrivers or pliers.

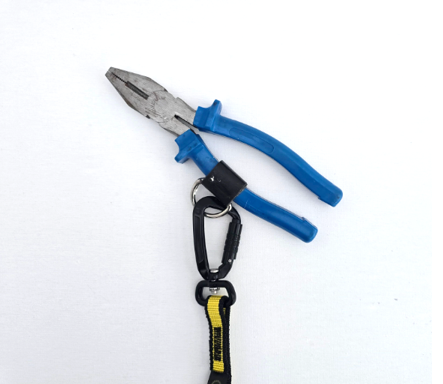

This Tool Lanyard is suitable to use with tools that have a captive handle/eye or to choke around/attach to retro fit tool attachments
Length of Tool Lanyard :900mm stretching to 1250mm
Maximum weight of tool or object to be attached to it : 3kg
Weight of Tool Lanyard:73g
Material: 15mm Elasticated Webbing
Connectors:10mm twistlock connector

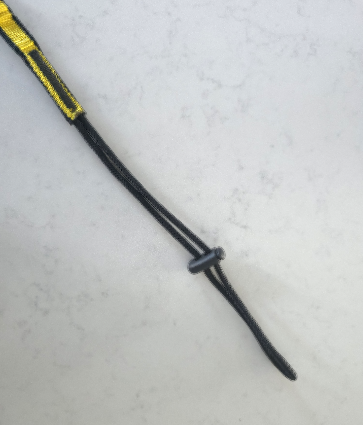

RGTL8-3 WRIST CORD

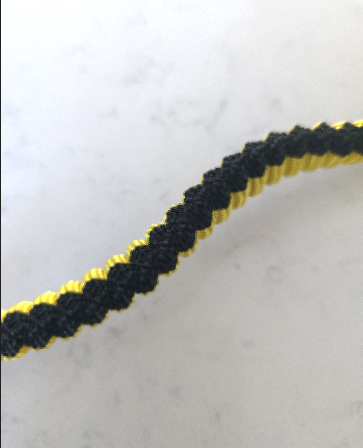

ELASTICATED WEBBING

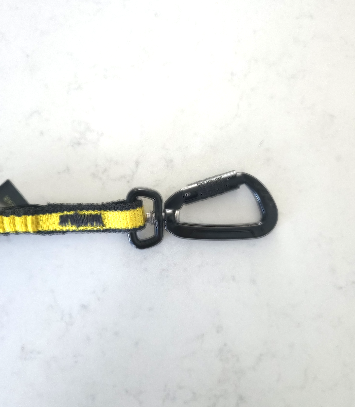

ROTATING CONNECTOR
FREEFALL DISTANCE
If the tool or object connected to this Tool Lanyard is dropped it will be allowed to free fall 1250mm so the user needs to ensure that there is no one working inside the fall distance.
When unstressed the working length is 900mm.
LABELLING
Tool Lanyards are labelled with
Load ratings
Unique Serial Number
Manufactured date
CONNECTING TO TOOLS
If the small hand tool being tethered hasn’t been made with an anchor connection point on it, a Dee- Ring can be taped to the body of the tool where it won’t affect its functionality using self-amalgamating tape .
WRIST STRAP
The Wrist Strap provides an anchor point for tools or objects with a maximum weight of 3kg.
It is made from tough polyester webbing and locks onto the wearers wrist by overlapping a velcro band.
The Dee ring offers connection to a Tool lanyard karabiner or choke cord.
Detailed information about the Wrist Strap on this link

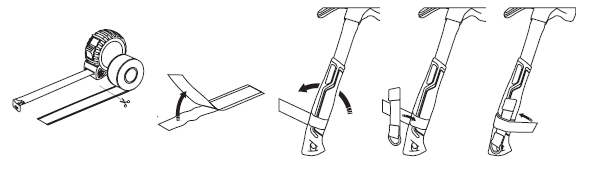

Measure and cut a length of Tape allowing for eight wraps around the tool.
Peel back a short length of the tapes protective backing film keeping it clean and dry.
Make one complete wrap of the tool overlapping the tape onto itself.
Place a Dee-Ring onto the Tool then wrap the tape through it and around the Tool, stretching the Tape tightly for another seven wraps.
When at the end of the Tape, press it firmly onto itself to secure it.
Pull lightly on the Dee-Ring to ensure that it is secure- do not remove the Tape once secure.
A curing period of 24 hours is recommended to ensure a secure bond.
Match the weight rating: Always confirm your tool’s weight is within the Tool Lanyard’s `load-rating. Overloading is a primary cause of failure.
Inspect regularly: Before every use, check the Tool Lanyard’s webbing, stitching, and connectors for any cuts, tears, corrosion, or damage.
Check the connection: Use a Tool Lanyard with a locking carabiner or a barrel lock to ensure a secure connection that won’t accidentally disengage.
Connect to a reliable anchor: Attach the Tool Lanyard to a solid anchor point on your person (such as a work belt or harness loop-max. 3kg) or a fixed structure.
